MACUBE 310P
MACUBE 310P is an ATX case that offers premium user experience. With outstanding ventilation and elegant aesthetics, it is the perfect companion for your PC system.

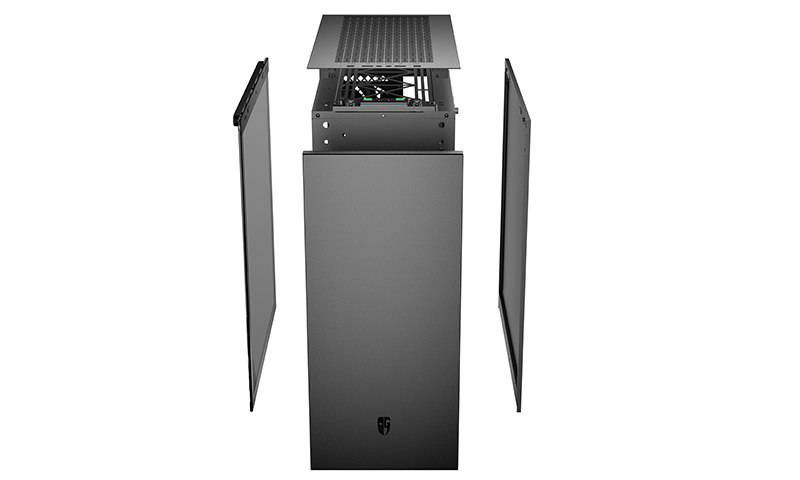

SNAP-FIT FRONT AND TOP PANEL, EASY TO REMOVE AND CLEAN DUST FILTERS.

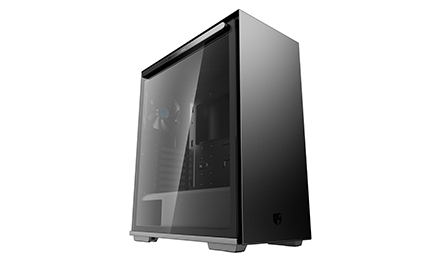

TINTED, TEMPERED GLASS PANEL, TASTEFUL AND STURDY.

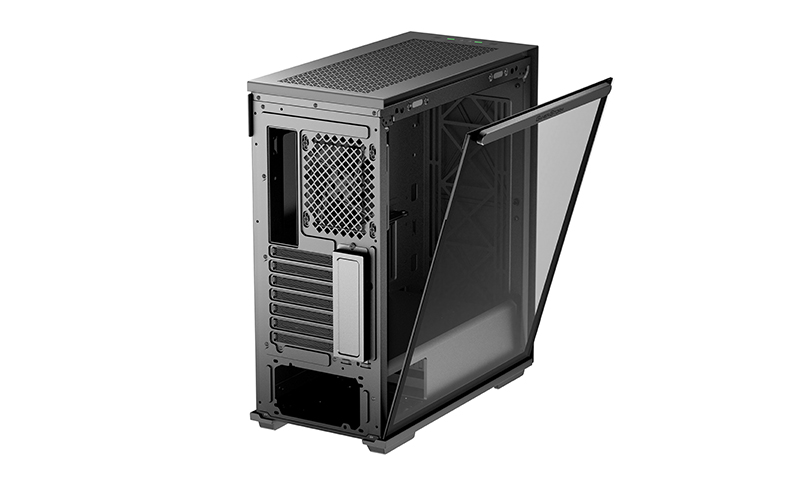

MAGNETIC SIDE PANELS, EASY TO MAINTAIN OR UPGRADE HARDWARE
CHILD SAFETY LOCK ON BOTH MAGNETIC PANELS, PROTECTING YOUR LOVED ONES FROM GETTING HURT.
PREMIUM BUILDING EXPERIENCE

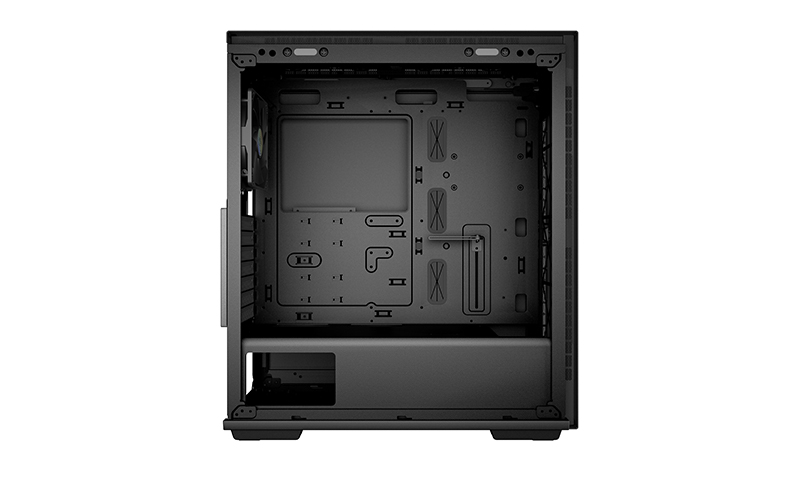

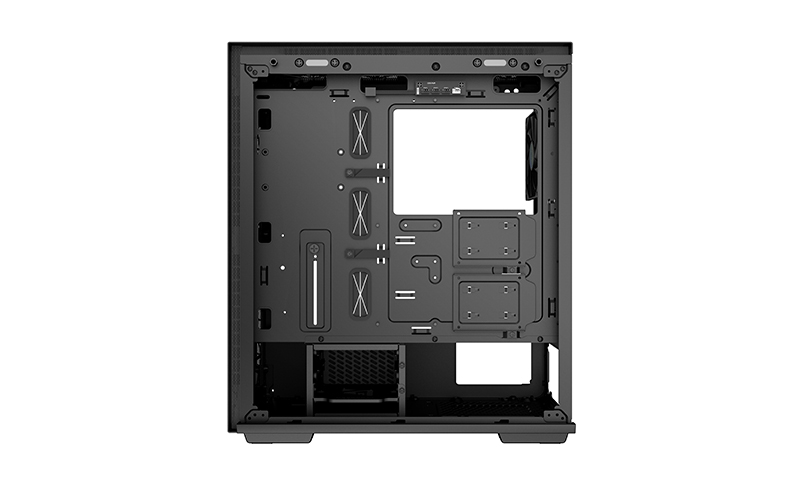

An abundance of accessories are installed on the motherboard tray to keep everything neat and safe.
1Velcro Cable Management Straps
2Graphics Card Holder
3Fan Hub
4Rubber Grommets
  • MAXED OUT &ELEGANT VENTILATION
    The 13mm-wide intake channels are located on both sides of the front panels, it remains concealed while providing more-than-sufficient air supply.

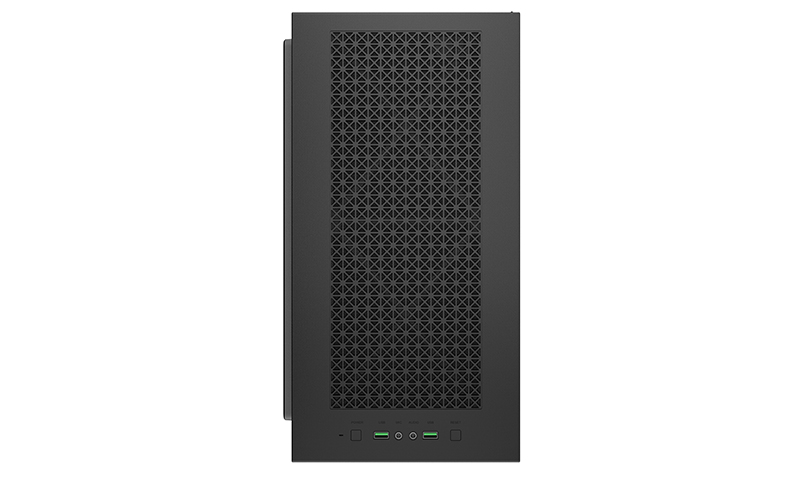

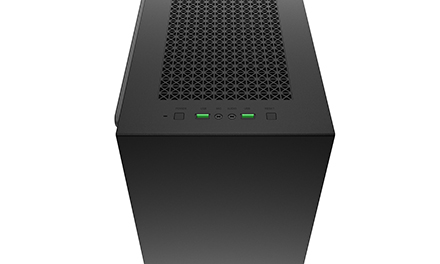

    The exhaust is maxed out at the mesh top panel, no heat loitering in the case!
  • MAXED OUT &ELEGANT VENTILATION
    The 13mm-wide intake channels are located on both sides of the front panels, it remains concealed while providing more-than-sufficient air supply.
    The exhaust is maxed out at the mesh top panel, no heat loitering in the case!
  • FAN & RADIATOR SUPPORT
    Supports 3*120mm fans at the top, 360mm radiators at the front.
    Front

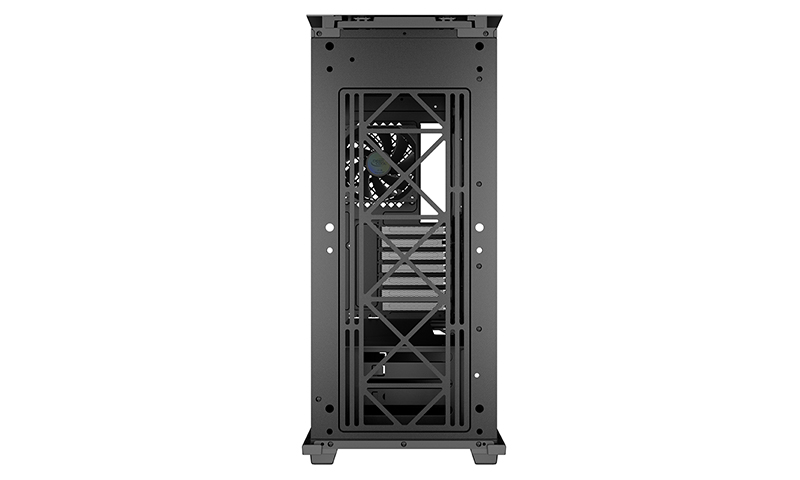

    Rear
    Top
  • FAN & RADIATOR SUPPORT
    Supports 3*120mm fans at the top, 360mm radiators at the front.
SIMPLE AND TASTEFUL

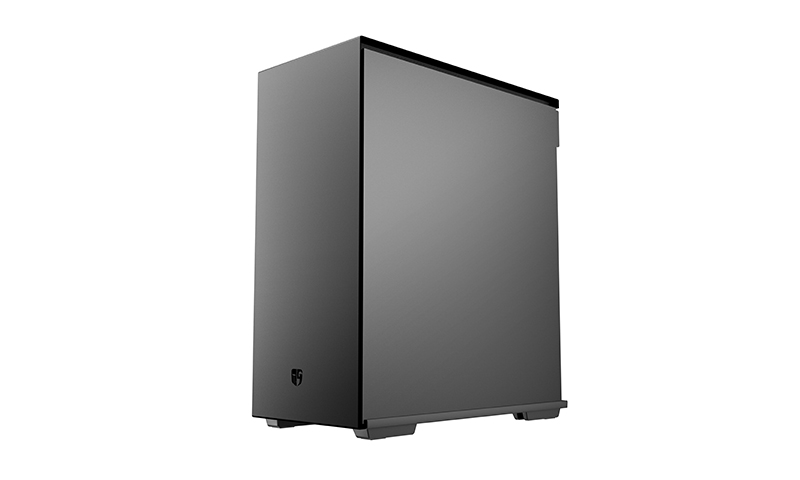

Beneath its minimalistic design, details like top mesh with print, concealed front ventilation and matt paint coating add its own unique styling. MACUBE 310P is not just a computer case, but also a work of art.

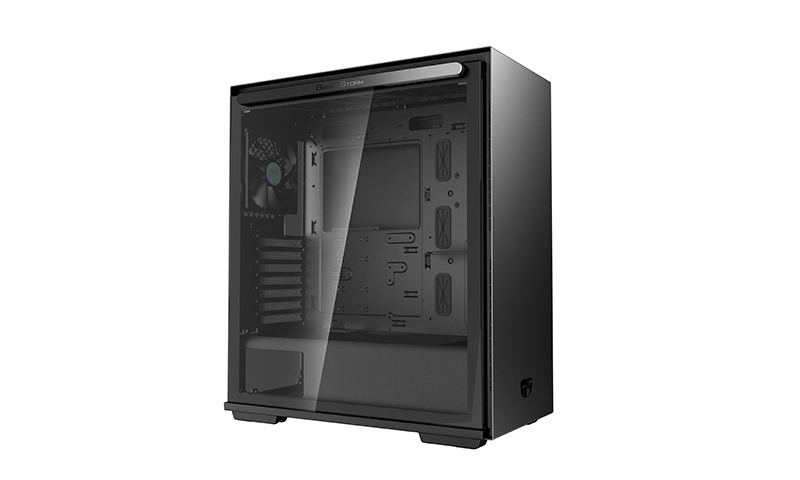

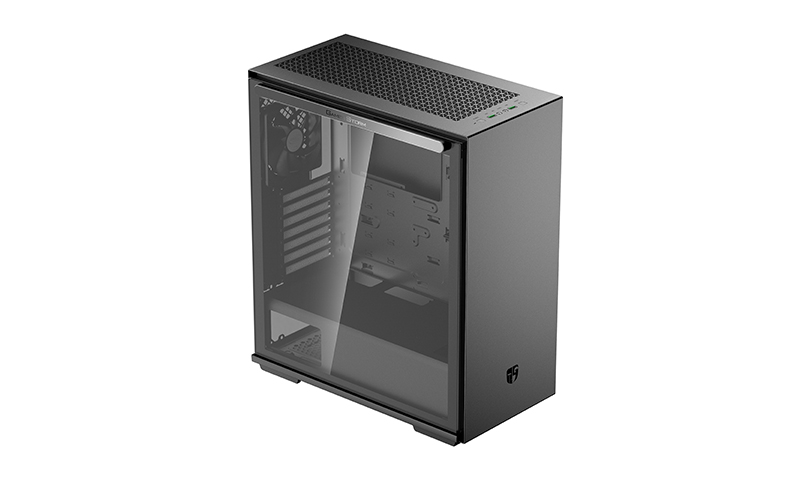

Tinted, tempered glass panel, tasteful and sturdy.

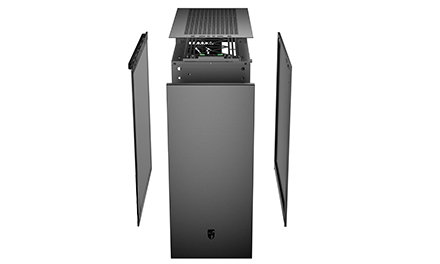

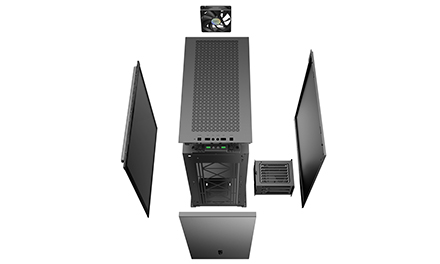

Snap-fit front and top panel, easy to remove and clean dust filters.
Magnetic side panels, easy to maintain or upgrade hardware.
Child safety lock on both magnetic panels, protecting your loved ones.
An abundance of accessories are installed on the motherboard tray to keep everything neat and safe.

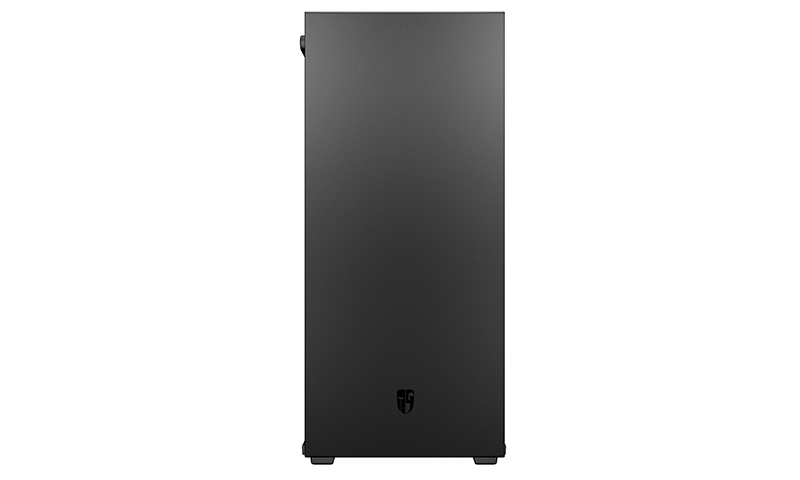

The front intake channels remain concealed while providing more-than-sufficient ventilation.
The exhaust is maxed out at the mesh top panel, no heat loitering in the case.
Minimalistic design with unique styling.

Technical Spec

Motherboards Mini-ITX / Micro-ATX / ATX
Materials ABS+SPCC+Tempered Glass
Product Dimensions 424.6mm×215mm×494.6mm(L×W×H)
Carton Dimensions 540mm*283mm*495mm
Net Weight 8.33KG
Gross Weight 10.34KG
5.25" Drive Bays 0
3.5" Drive Bays 2
2.5" Drive Bays 2
I/O Panel USB3.0×2、Audio×1、Mic×1
Expansion Slots 7+2 Slots

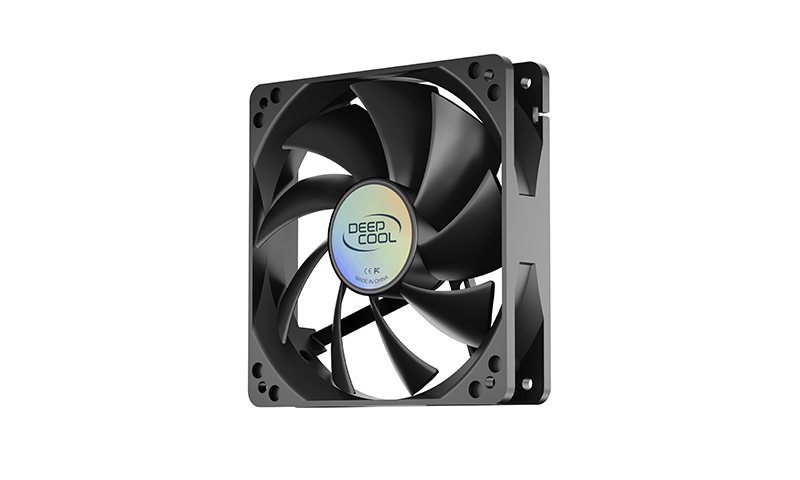

Cooling Fans Compatibility Pre-installed: Rear: 1×120mm DC fan;                     Optional: Front: 120mm×3/140mm×2, Top: 120mm×3/140mm×2
Power Supply Type ATX PS2 (Length less than 160mm)
CPU Cooler Height Limit 165mm
Liquid Cooler Compatibility Front: 120/140/240/280/360; Rear: 120
VGA Length Limit 330mm
Cable Management 23mm clearance
EAN 6933412714071
P/N GS-ATX-MACUBE310P-BKG0P
