Description
NEW ARK 90 is E-ATX case with integrated liquid cooling with visible external flow systems, designed for users with a special preference for water-cooling solutions for their rigs. NEW ARK 90 completely eliminates the conventional technical barrier between DIY water-cooled towers to provide users with the perfect user experience. The tower is a perfect integration of extreme minimalist designs, glass panels, and RGB lighting to provide a unique visual aesthetics. Internal compartments offer excellent expandability and compatibility. The NEW ARK 90 comes with 4 independent cooling slots, dominating its competition by allowing users to easily create their personalized water-cooled rig
· New Ark 90 comes with CAPTAIN Series Liquid Cooling System with 280mm Radiator & 2pcs 140mm RGB fans to achieve maximum cooling efficiency

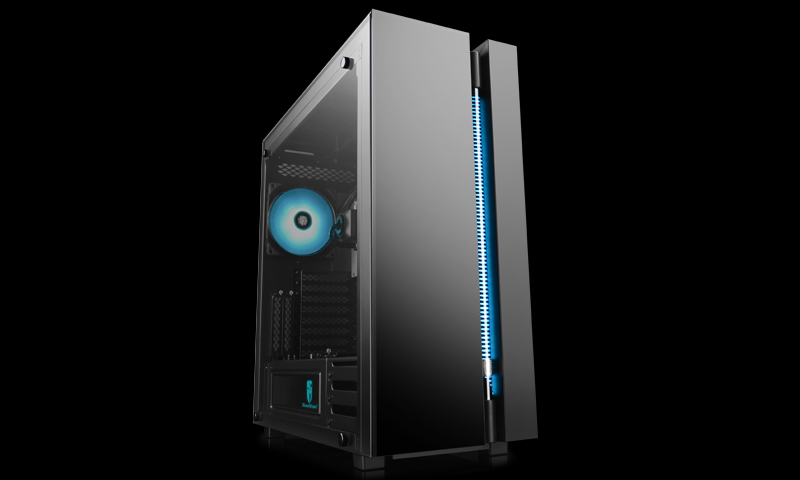

· Specially designed external transparent water-tube with a flow-rotor on the front panel makes the dynamic flow rate of the coolant clearly visible and can also be used with DIY water-cooling systems

获取 Adobe Flash Player

Sync multi-point lighting system allows simultaneous color changing of the lighting on different parts of the system, enhances the aesthetics of your whole rig
·RGB Top Light
·RGB Water-block
·RGB Fan
·RGB Front Light
·RGB PSU Shroud

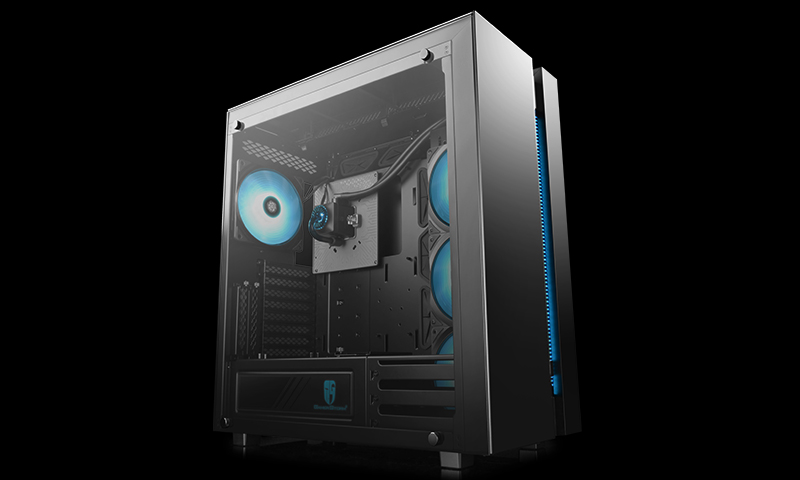

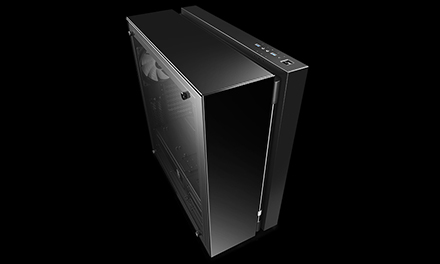

Tempered glass sections on the top panel, front panel and the whole left side-panel feature the texture of black obsidian and together with the integrated RGB lighting system allows users to display the key elements of their system
360° Overview

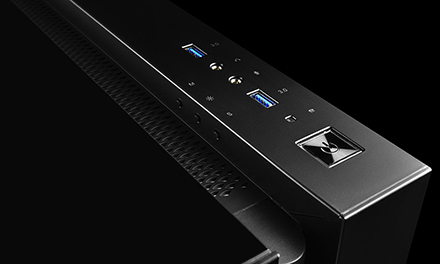

The brilliant RGB Lighting System, easily controlled by manual buttons, provides an engaging visual experience

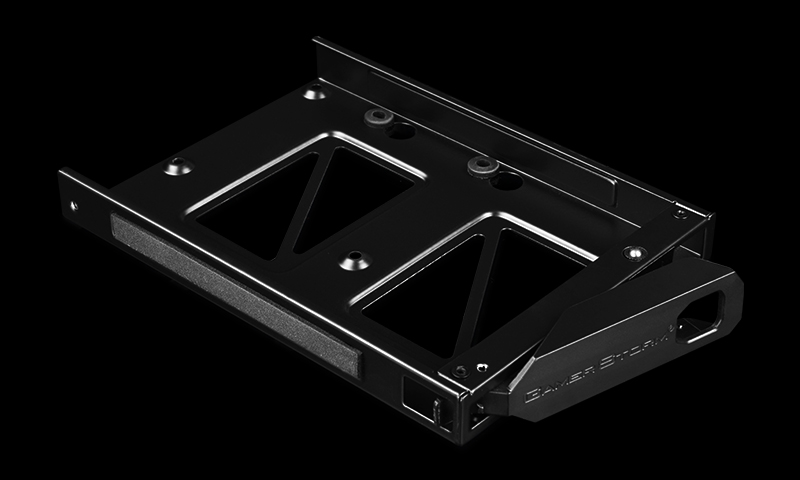

The HDD cage is removable for additional flexibility and features a pull type HDD rack

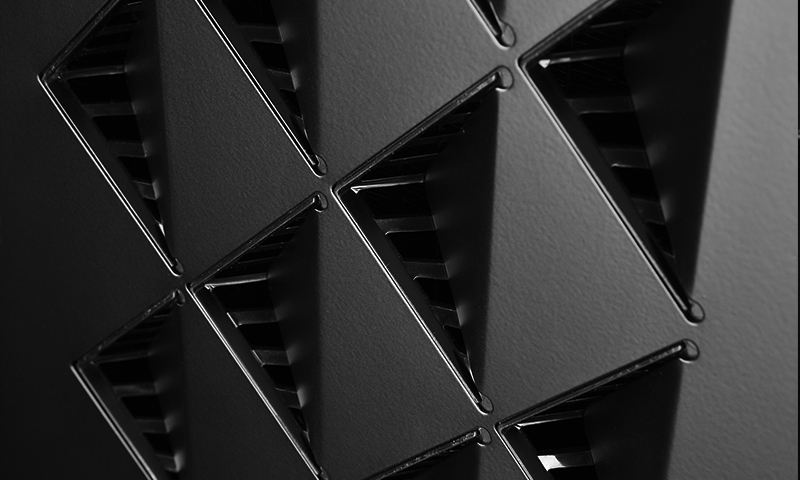

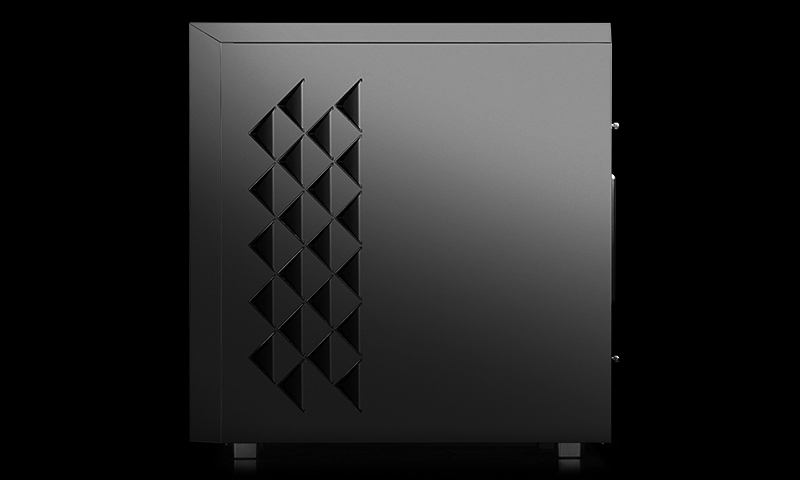

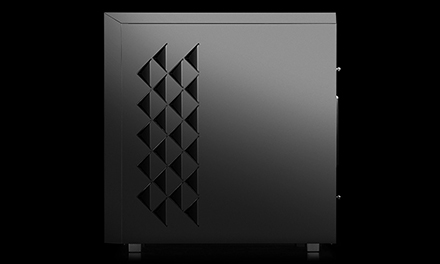

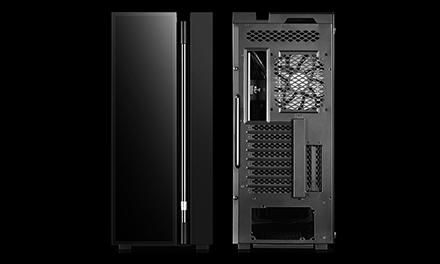

The right side has an intriguing ventilation system with distinctive "dragon scale" venting, creates efficient air flow for quick heat dissipation

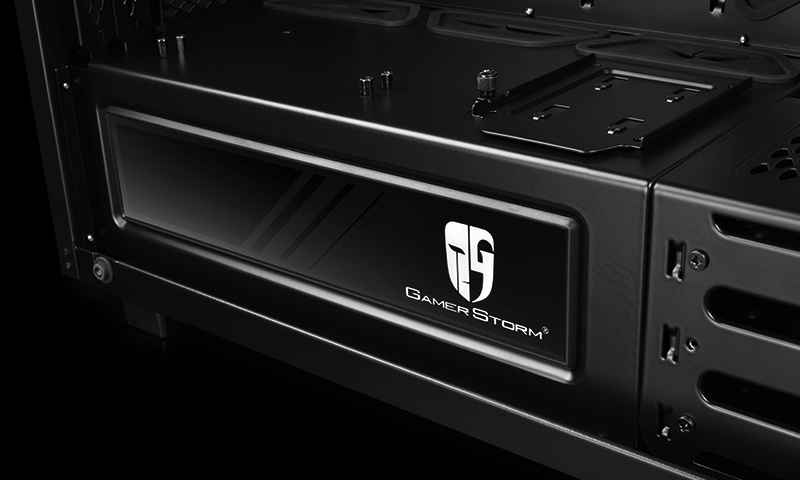

Innovative PSU shroud with RGB effect GAMER STORM Logo provides the perfect solution for color-conscious gamers and specialist system builders alike

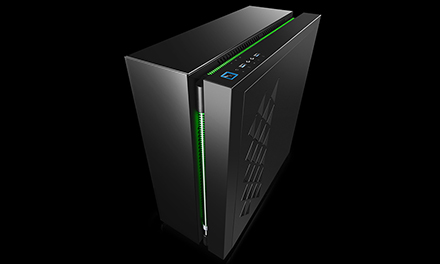

The top panel comes with a special feature which allows them to be decorated with an RGB lighting strip

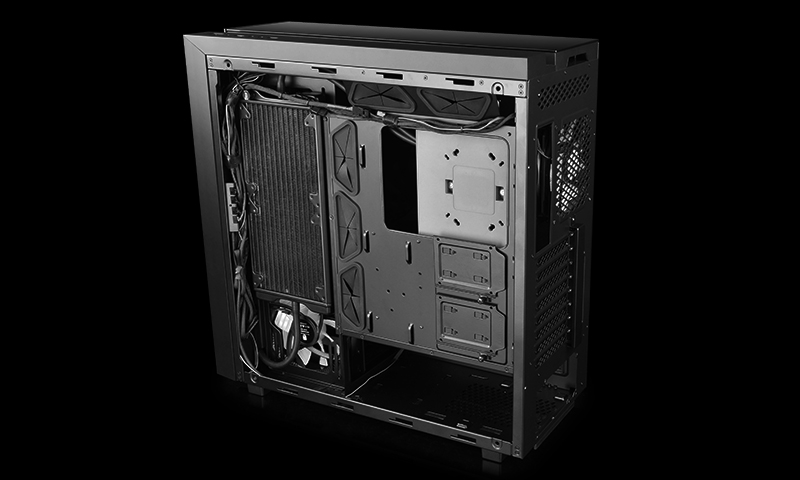

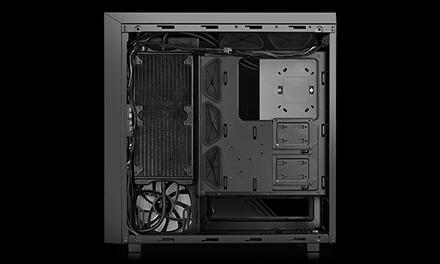

Ultra-wide 230 mm tower compartment with extra clearance (25 mm) for cables delivers extreme cooling performance and ease of installation
Ultra-wide 230 mm tower compartment with extra clearance (25 mm) for cables delivers extreme cooling performance and ease of installation

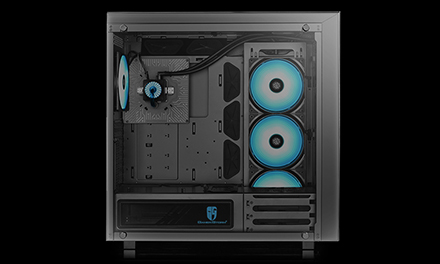

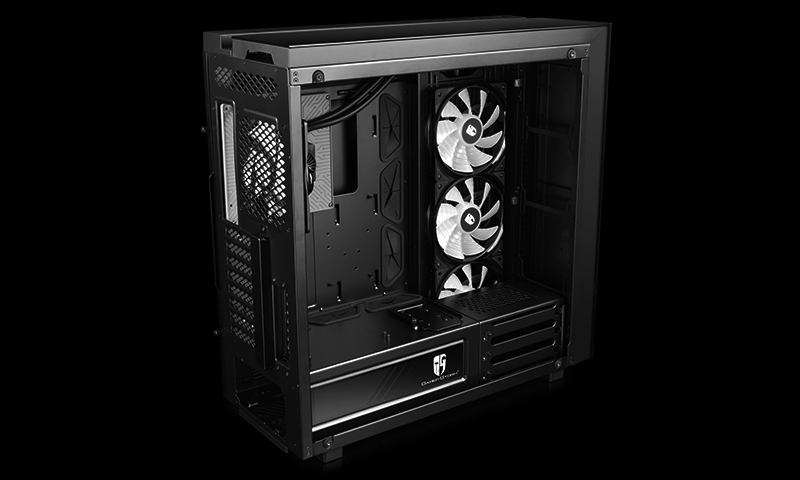

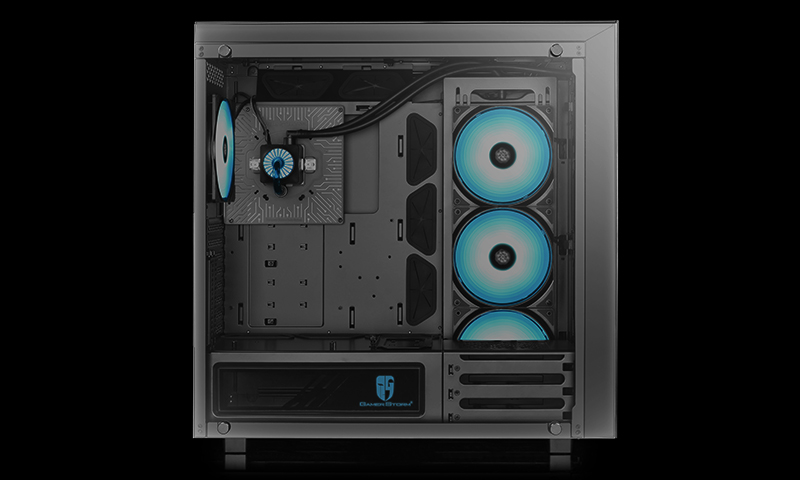

Specially designed CAPTAIN Series Liquid Cooling System with 280mm Radiator & 2pcs 140mm RGB fans vertically installed on the side panel, can reduce the impact on CPU heat dissipation performance caused by the graphic card.

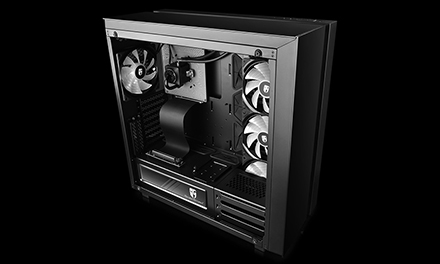

Graphics card can be mounted vertically to provide the perfect showcase for it with the optional connection cable
Specially designed external transparent water-tube with a flow-rotor on the front panel makes the dynamic flow rate of the coolant clearly visible and can also be used with DIY water-cooling systems

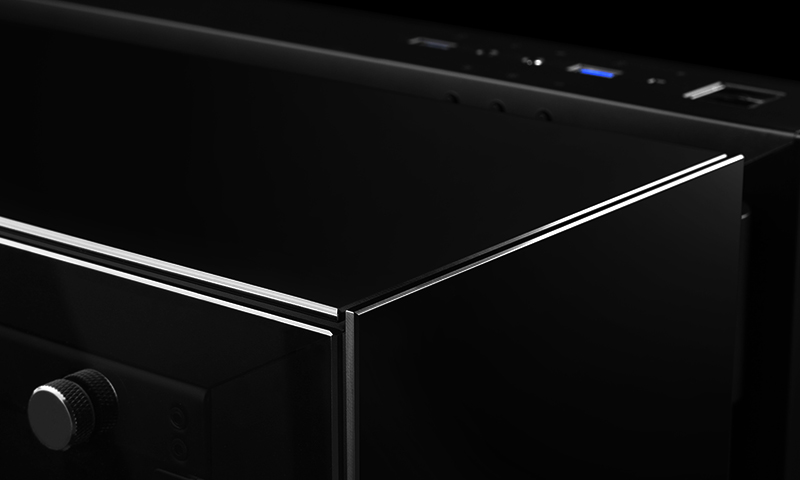

Tempered glass sections on the top panel, front panel and the whole left side-panel feature the texture of black obsidian

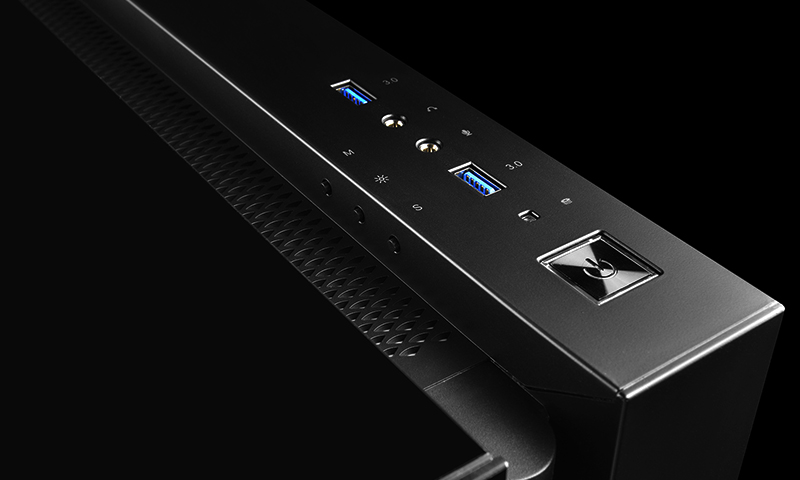

The brilliant RGB Lighting System, easily controlled by manual buttons, provides an engaging visual experience
*Please note: For AMD motherboards, rotate cooler for the best position when installing. Avoid overstretching the hoses.

Application For

Intel

LGA20XX/LGA1200/1151/1150/1155


High End Desktop i9/i7
Core i7/i5/i3
Pentium G
Celeron G
AMD

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1


Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technical Spec


Motherboards E-ATX/ATX/M-ATX/Mini-ITX (MAX 305×276mm)
Materials SGCC+Plastic (ABS)+Tempered Glass (Panel thickness: 0.8~1.0mm)
Product Dimension (LxWxH) 530×232×545.5mm
Net Weight 14.34kg
Gross Weight 17.77kg
5.25" Drive Bays 0
3.5" Drive Bays 3
2.5" Drive Bays 3+3
I/O Panel 2×USB3.0 /Audio(HD)×1/Mic×1/Manual Controller for RGB
Expansion Slots 8 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans Support Pre-installed: Rear: 1×140mm RGB fan; Side: 3×140mm RGB fan; Optional: Top:3×120mm fan; Front: 3×120mm fan
Power Supply Support ATX PS2 (maximum length: 200mm)
CPU Cooler Compatibility 186mm height limit Liquid Cooler: Front: 120/240mm or 360mm (Remove HDD cage); Top: 120/240/360mm; Rear: 120/140mm
Graphic Card Clearance 310mm(Horizontal mounting)/400mm(Vertical mounting)
Carton Dimension 625×335×627mm(L×W×H)
Water Block Dimensions 92.5×93×85mm(L×W×H)
Radiator Dimensions 330×125×28mm(L×W×H) (aluminum material)
Fan Dimensions 140×140×25mm RGB Fan×4pcs
Fan Speed 500±200-1800±10%RPM (4Pin)
Fan Air Flow 90.14 CFM (MAX) Each 140mm Fan
Fan Noise Level 17.6~35.3dB(A)
Fan Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.44±10%A(MAX) Each Fan (Including RGB lights)
Fan Power Consumption 5.28W Each
Pump Connector 3Pin
Pump Operating Voltage 6~13.8VDC
Pump Rated Voltage 12VDC
Pump Speed 2300±10%RPM
Pump Current 0.2A(MAX)
Pump Power Consumption 2.4W
EAN 6933412713425
P/N DP-ATXLCS-NARK90BK

Product Dimension
