LUCIFER
HOME - PRODUCT - CPU AIR COOLER - LUCIFER
FANLESS Design

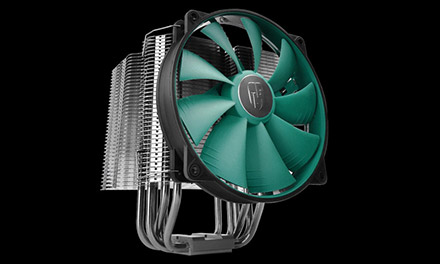

Lucifer CPU cooler is designed to cool the mainstream processors in fanless mode to create a totally silent system; meanwhile, Lucifer is capable of cooling high-end processors with the help of good airflow inside the case.

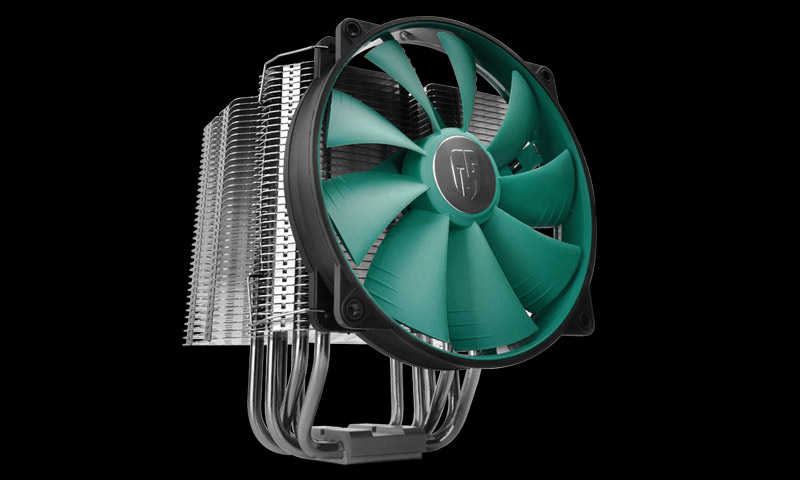

Silent PWM Fan

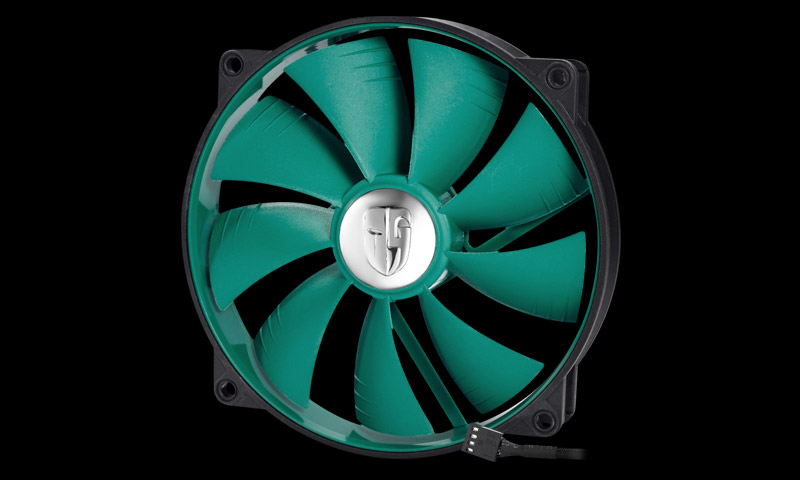

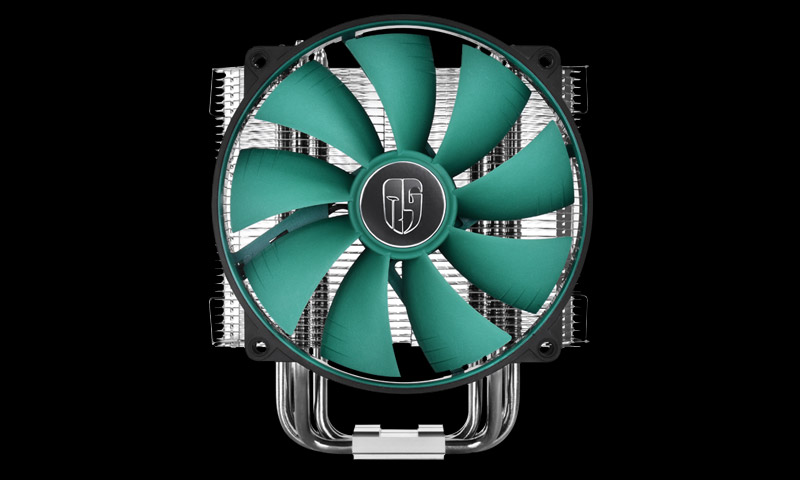

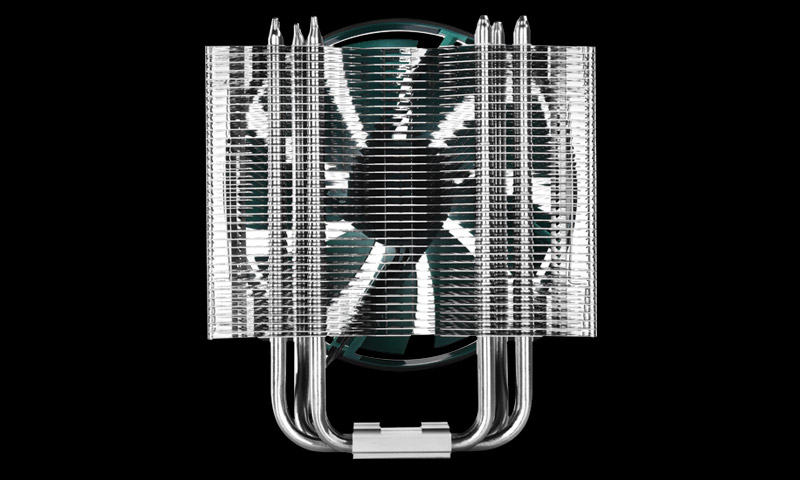

The bundled 14cm patented rubber fan is able to enhance the cooling capacity of Lucifer up to 300W. Users can install the fan as a push or pull.
6 High-Performance Heatpipes

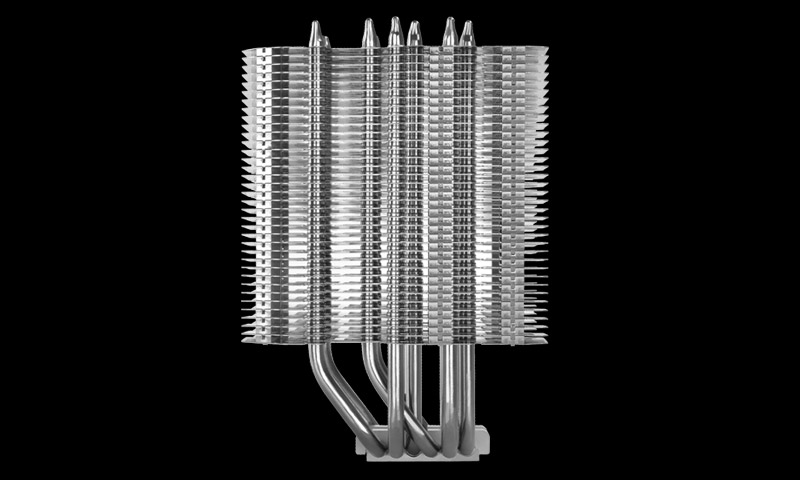

The six pieces of copper heatpipes are specially placed asymmetrically to avoid the interference with the memory. Lucifer excels not only in cooling performance with these 6 heatpipes but also in high compatibility with the system configuration.

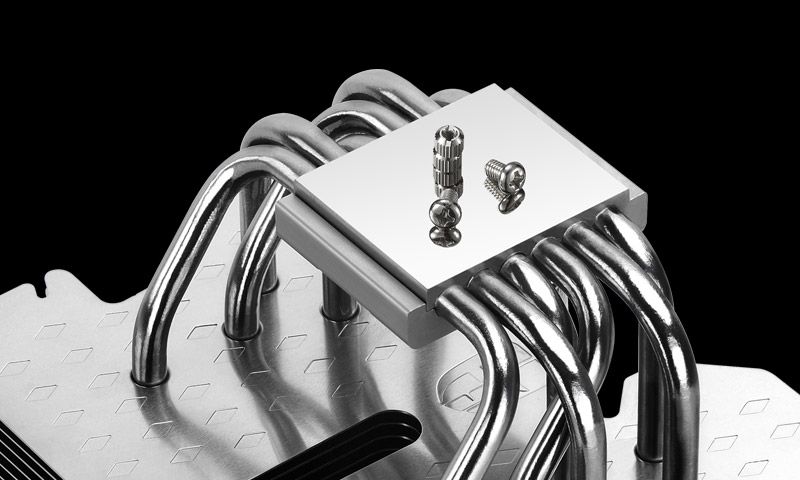

Mirror Finished Copper Base
Heatpipes are firmly soldered onto the copper base to enhance the heat conductivity from the processor to the heatsink. For the quickest heat transfer, the copper base has been CNC machined into a flat surface with a little convex design.

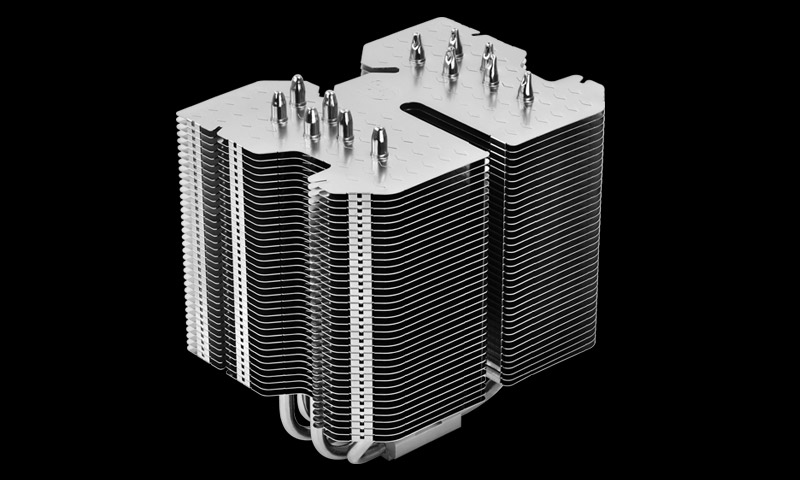

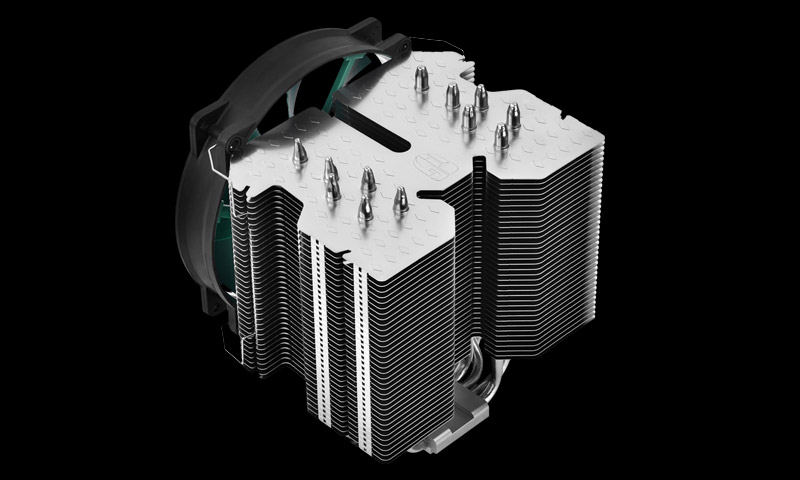

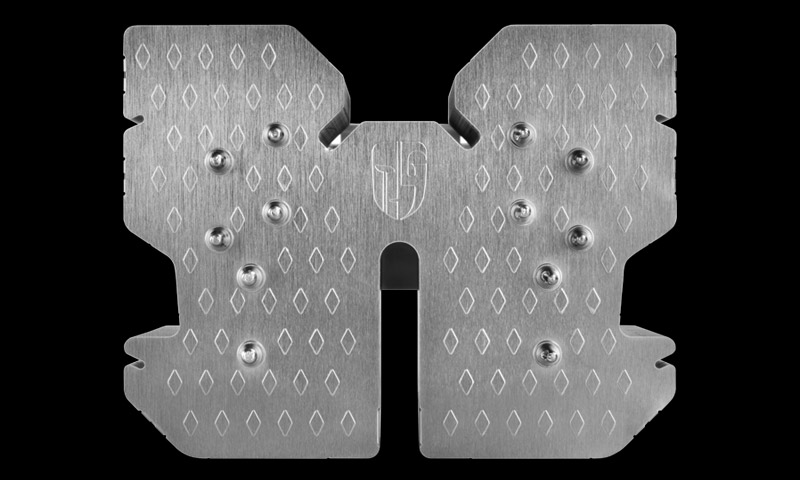

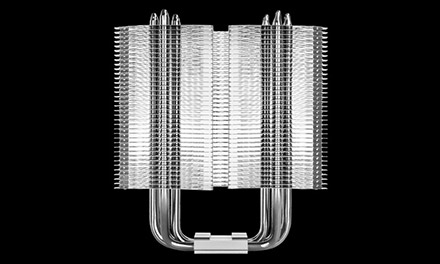

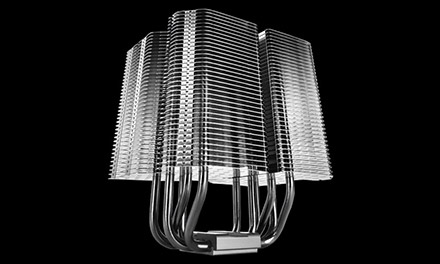

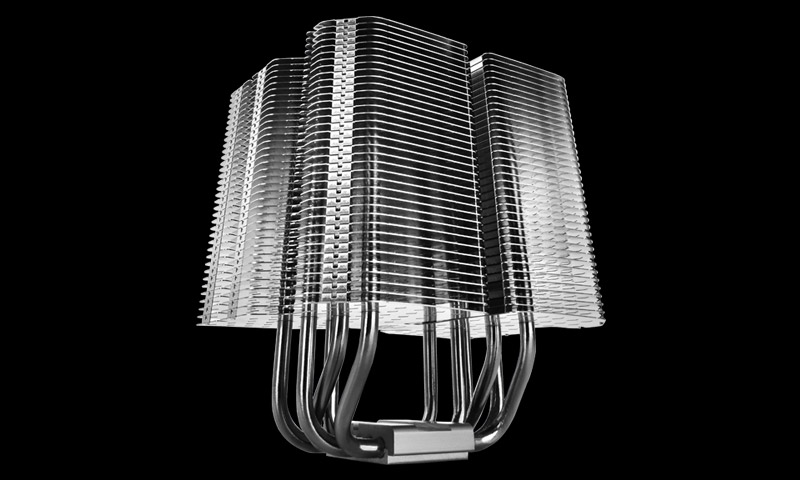

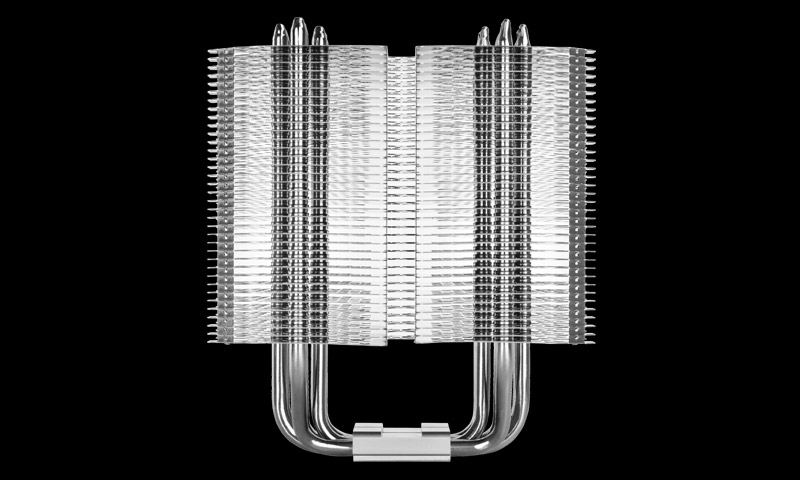

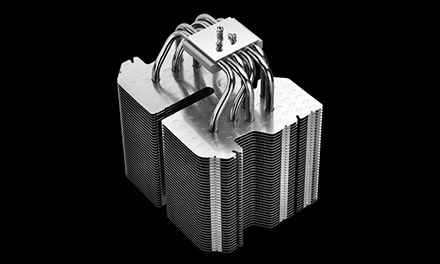

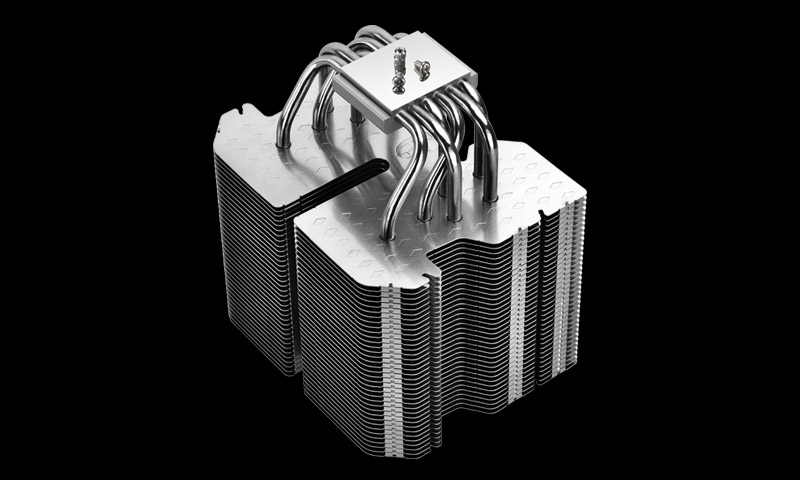

Massive aluminum fins are designed as a pair of wings, and this provides enough heat dissipation area when used in fanless mode.

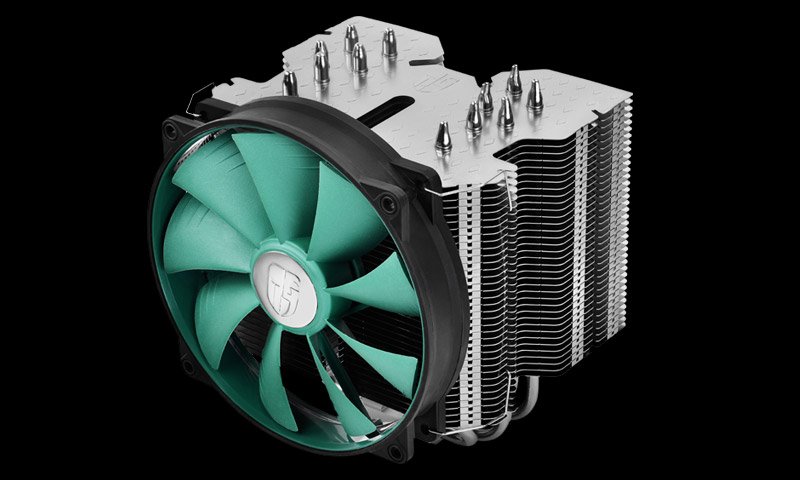

Lucifer is versatile in set-ups: users can build a totally fanless system with it or build a air cooling system with it in passive or a super performance system with Lucifer with the fans.
All nickel plating finish enhances the aesthetics of the cooler and also increases the lifespan with anti oxidation surface.
Lucifer is compatible with the latest Intel Socket LGA2011. At the same time, it’s equipped with a full set of installation kits for all the mainstream processors in the market.
Lucifer CPU cooler is designed to cool the mainstream processors in fanless mode to create a totally silent system.

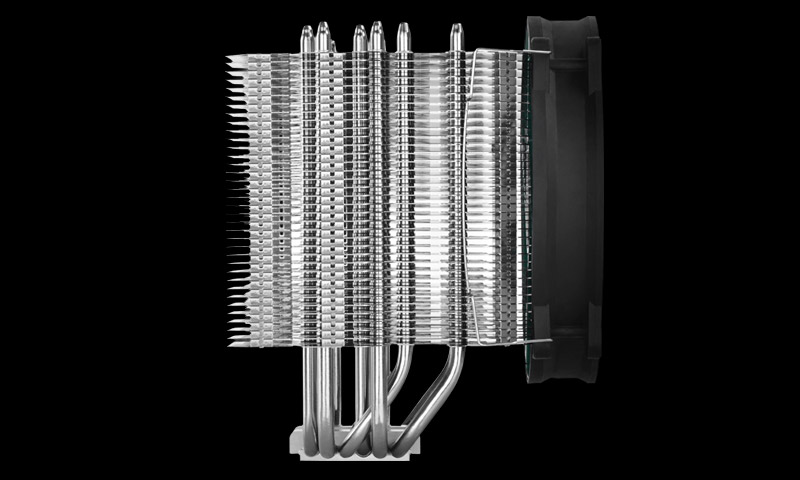

6 copper heatpipes are specially placed asymmetrically to avoid the interference with the memory.
The bundled 14cm patened rubber fan is able to enhance the cooling capacity of Lucifer up to 300W.
Mirror finished polished copper base keeps perfect contact with the CPU surface to achieve the best cooling performance.
The copper base has been CNC machined into a flat surface with a little convex design to guarantee the quickest heat transfer

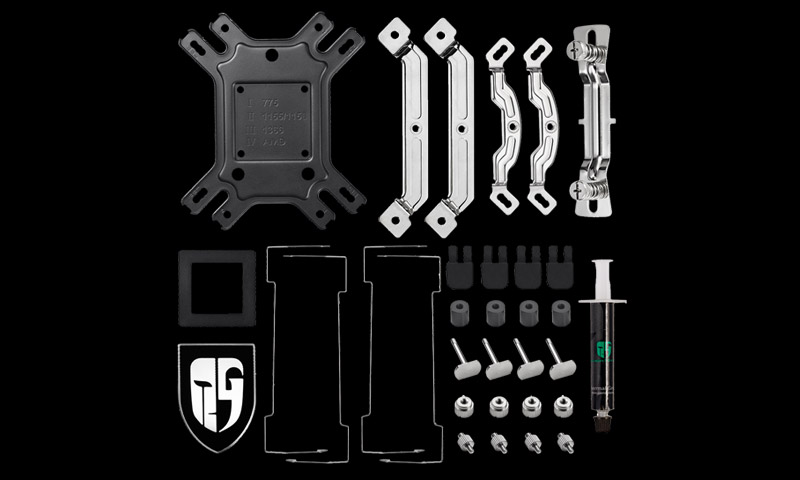

Equipped with multiple clips to support Intel LGA2011/1366/1156/1155/1151/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2.

Application For

Intel Socket 130W

LGA2011-V3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1151/LGA1150/LGA775
Core i7/i5/i3
Core 2 Extreme
Core 2 Quad
Core 2 Duo
Pentium/Pentium G
Pentium D/Pentium 4
Celeron Dual-Core
Celeron/Celeron D
AMD Socket 125W

FM2/FM1/AM3+/AM3/AM2+/AM2

FX X8/X6/X4
A10/A8/A6/A4
Phenom II X6/X4/X3/X2
Phenom X4/X3
Athlon II X4/X3/X2
Athlon X2
Athlon/Athlon FX
Business Class
Sempron

Technical Spec

Overall Dimension (Without Fan) 140X110X163mm
Overall Dimension (With Fan) 140X136X168mm
Net Weight 1079g (With Fan)
Heatpipe 6X6mm Heatpipe
Fin Material Aluminum
Base Material Full-copper base
Fan Dimension Φ140X26mm
Fan Weight 143g
Fan Speed 700±200~1400±10%RPM
Rated Current 0.17±10%A(MAX)
Power Input 2.04W
Max. Air Flow 81.33CFM
Noise 17.8~31.1dB(A)
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Starting Voltage 7VDC
Bearing Type Hydro Bearing

Product Dimension

  •
